ISDB-TFULLSEG高清移动数字电视模块车载电视模块

ISDB-TFULLSEG高清移动数字电视模块车载电视模块的详细描述：

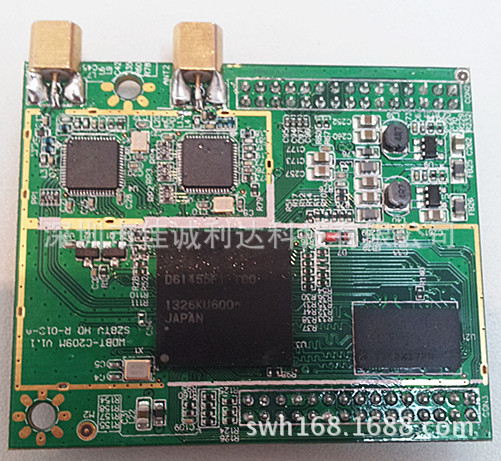

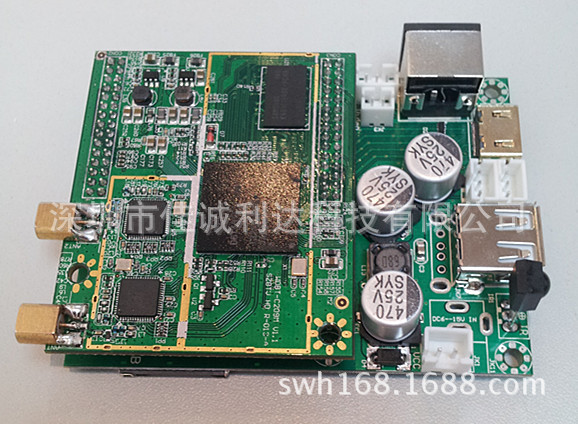

1. Description９�br />The DVB-T receiver module is a 2x2 diversity, It is Digital Terrestrial Transmission signals. It is full
compliant with ISDB-T Full SEG Japan（ARIB）and Brazil standard. Suitable for application of car or
portable system.
2. Features:
Double Antenna.High Sensitivity: average 85dB; Slim & Small size: 60(W) x 50 (L) x 5.0(T) mm;
Support Full SEG ISDBT , Support BCAS(optional);
Video output interface support HDMI, YPbPr, CVBS;
Support USB recording and playback is optional by USB;
Support SATA and USB HDD (FAT32, exFAT) up to 1TB;
Support EPG, time-shift;
Support Video Resolutions: 480i, 480P, 576i, 576P, 720P, 1080i and 1080P;
Support UART/ Infrared Remote Control;
Software update from USB;
Single Power Input: 4.5----5.5V;
Suitable for DTV, PMP, GPS, Portable TV, STB, Home TV Box products or mobile application;
3. Specifications:
* Frequency range: 93MHz � 770MHz ;
* RF Input level: -85 �� 2dBm ISDB Full SEG;
* Input impedance: 50 ohms
* Video Decoder: MKV, AVI, MP4 (MPEG-4 ASP@L5 DivX HD 1080P);
MPEG-2: MP@HL, MPEG-4: ASP@L5 with QMC, GMC (1 warp-point only);
H.264 / MPEG-4 AVC: HP@L4.2 , H.264 / MPEG-4 MVC: Stereo HP@L4.1;
VC-1: AP@L3, MP@HL, SP@ML ; AVS JP@L2.0, L4.0, 6.0;
DivX3, 4, 5, 6, 7 , WMV9: AP@L3, MP@HL, SP@ML ;
H.264, MPEG2 dual HD decoding support; VP6, Sorenson Spark, JPEG;
Supports 3D Video decoding (Side by Side (half));
* Audio Processor: Dedicated DSP for decoding and signal processing;
MPEG-1 and -2, layer 1 and 2, MP3;
MPEG-2 AAC, MPEG-4 AAC, MPEG-4 HE-AAC V1 L2/L4, V2 L2/L4 ;
Dolby Digital / Dolby Digital Plus;
Support for downmixing Dolby Digital / Dolby Digital Plus to 2 ch PCM;
Dolby Digital Plus to Dolby Digital transcode;
Supports MS10, DRA , WMA9 , DTS ;
Supports DTS transcoding, PCM L+R audio output;
* Command Interface: UART/IR;
* Power Consumption: Typ. <2W;
* Operating voltage: DC 4.5V;
* Temperature: Operation: -10 � � 50ℂ� Storage -20 � � 60ℂ�br />* Humidity: Operating: Less than 80＄� Storage Less than 90＄�br />ture is not,module is WIDBT-C102Ming module is WIDBT-C103MOTE
