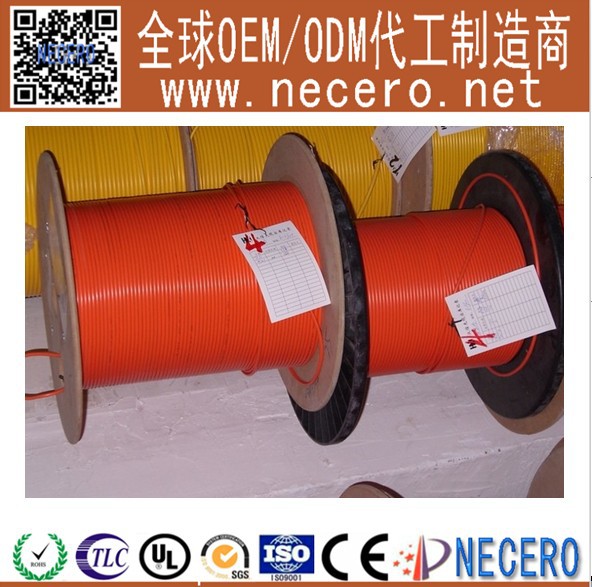

   产品描述Description
|
|

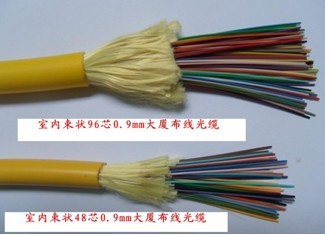

NECERO 生產的室內光纜是在緊套光纜光纖外均勻施放起加強作用的多股芳綸絲，再擠制阻燃外護套而成、br />
NECERO indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame-retardant sheath. |
|
产品特點 Characteristics
|
|
緊套光纖外徑均勻，剝離性好
Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
良好的阻燃性能
Good performance of flame-retardant
高、低溫特性穩宙br /> Low induced attenuation within the operating temperature range
光纖的幾何尺寸一致性好
Excellent geometrical dimension of the fiber |
|
产品應用 Application
|
|
數據通信傳輸
Data communication
光連接器的制作
Making connector
敷設方式：沿墻、頂、夾層、導管、線槼br /> Installation: riser, plenum, etc.
無嚴格防水要求的場合
Places where waterproof is not strictly required

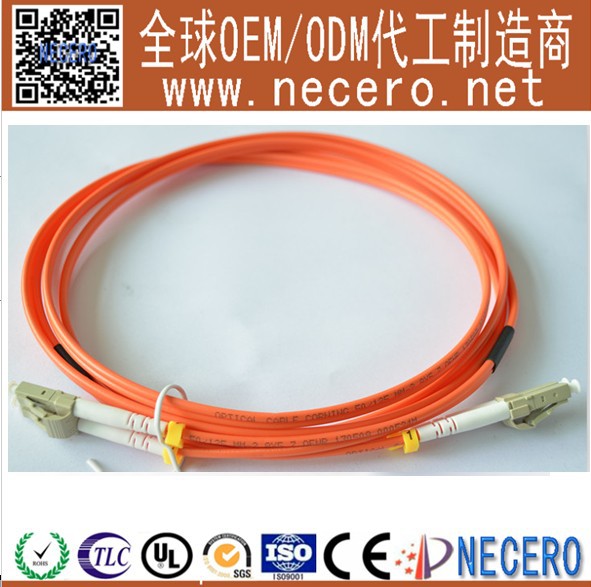

跳線、尾纖和室內布線
Making jumper, pigtail and building distribution |
|
产品描述 Description
|
|
單芯?Phi;900m?Phi;600m緊套光纖、芳綸加強元件、PVC護套、br /> 1fiber, 900m or 600 m Tight buffer fiber, Aramid yarn, PVC Jacket. |
|
产品標準 Standards
|
|
滿足YD/T 1258.2-2003、ICEA-596、GR-409、IEC794等標準；符合UL認證OFNR、OFNP要求、br /> Comply with Standard YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR and OFNP. |
|
光纜型號 Cable Code
|
|
|
SXC-III |
SXC-II |
SXC-I |
| 光纜直徑 Cable Diameter |
2.80.2mm |
2.00.2mm |
1.60.2mm |
| 光纜重量 Cable Weight |
6.9kg/km |
5.9kg/km |
4.0kg/km |
| 緊套光纖直徑 TBF Diameter |
90050m |
90050m |
60050m |
|
|
機械特 Mechanical Characteristics
|
|
| 允許拉伸劚br />Tensile Strength |
長期 Long term |
80N |
60N |
|
| 短期 Short term |
150N |
120N |
|
| 允許壓扁劚br />Crush Resistance |
長期 Long term |
100N/100mm |
| 短期 Short term |
500N/100mm |
彎曲半徑
Bending Radius |
動態 Dynamic |
20D （光纜直 Cable Diameter（/p> |
| 靜態 Static |
10D （光纜直 Cable Diameter（/p> |
|
|
光學特 Optical Characteristics
|
|
|
50/125m |
62.5/125m |
G.652 |
G.655 |
衰減
Attenuation(+20? |
@850nm |
3.5dB/km |
3.5dB/km |
|
|
| @1300nm |
1.5dB/km |
1.5dB/km |
|
|
| @1310nm |
|
|
0.45dB/km |
0.50dB/km |
| @1550nm |
|
|
0.30dB/km |
0.50dB/km |
寬帶（A級）
Bandwidth (Class A) |
@850nm |
500MHzkm |
200MHzkm |
|
|
| @1300nm |
1000MHzkm |
600MHzkm |
|
|
| 數值孔 Numerical Aperture |
0.2000.015NA |
0.2750.015NA |
|
|
| 光纜截止波長 Cable Cut-off Wavelength cc |
|
|
1260nm |
1480nm |
溫度附加衰減(-20℃~+85?
Attenuation at temperature cycling (-20℃~+85? |
@1300nm |
0.25dB/km |
0.25dB/km |
|
|
| @1550nm |
|
|
0.10dB/km |
0.15dB/km |
|
|
環境特 Environmental Characteristics
|
|
