室外通讯光缆,GYXTW

室外通讯光缆,GYXTW的详细描述：

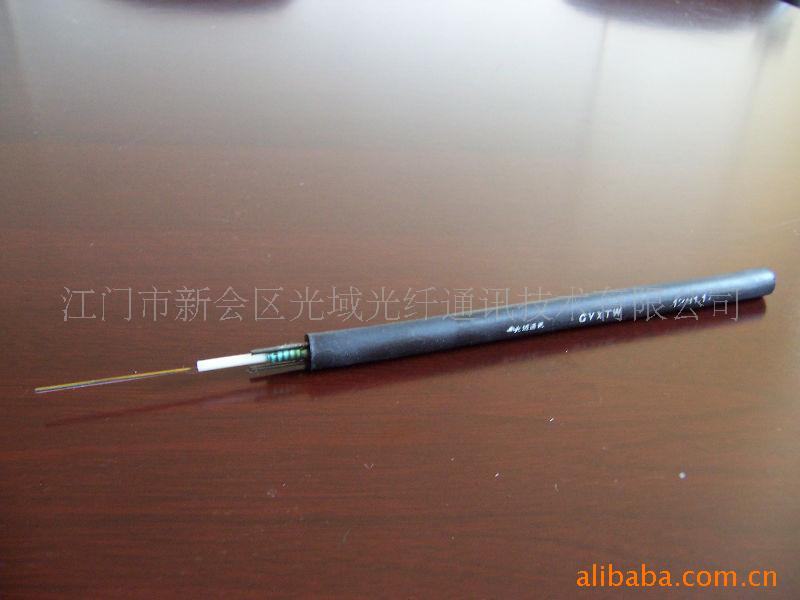

Unitube Light-armored Cable (GYXTW)

Application:

lLaying method: Aerial

lSuitable for long-distance trunk and LAN communication.

lFiber type: Single-mode/Multimode

Characteristics

lTwo parallel steel wires ensure tensile strength

lPSP enhances the cable crush resistance, impact resistance and moisture-proof.

lAccurate fiber excess length ensures good mechanical and temperature performance.

lSpecially designed compact structure is good at preventing loose tubes from shrinking.

lHigh strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.

lSmall diameter, light weight and it is easy to be installed.

lCrush resistance and flexibility

Technical Specification

lTemperature range :-40ℂ�/span>｝�/span>+60ℂ�/span>

lAttenuation : @1310nm；�/span>0.36dB/km@1550nm；�/span>0.22dB/km

Fiber Count	Cable Diameter(mm)	Weight (kg/km)	Min.Bending Radius(mm)		Max Tension(N)		Crush Pressure(N/100mm)
			Dynamic	Static	Short Term	Long Term	Short Term	Long Term
2-6	8.0	70	20��D	10��D	1500	600	1000	300
8-12	8.5	75	20��D	10��D	1500	600	1000	300

以上各表仅列出部分产品，如您有需要，请与本公司联系，谢谢你的光临�?/span>

本公司大量供应各种型号规格的光缆，可以根据客户提供的不同技术参数来设计及生产、�/span>

如若以上没有您需要的产品，您可联系本公司，本公司产品规格型号齐全，价格合理，质量可靠，保证让你满意，谢谢�?/span>
