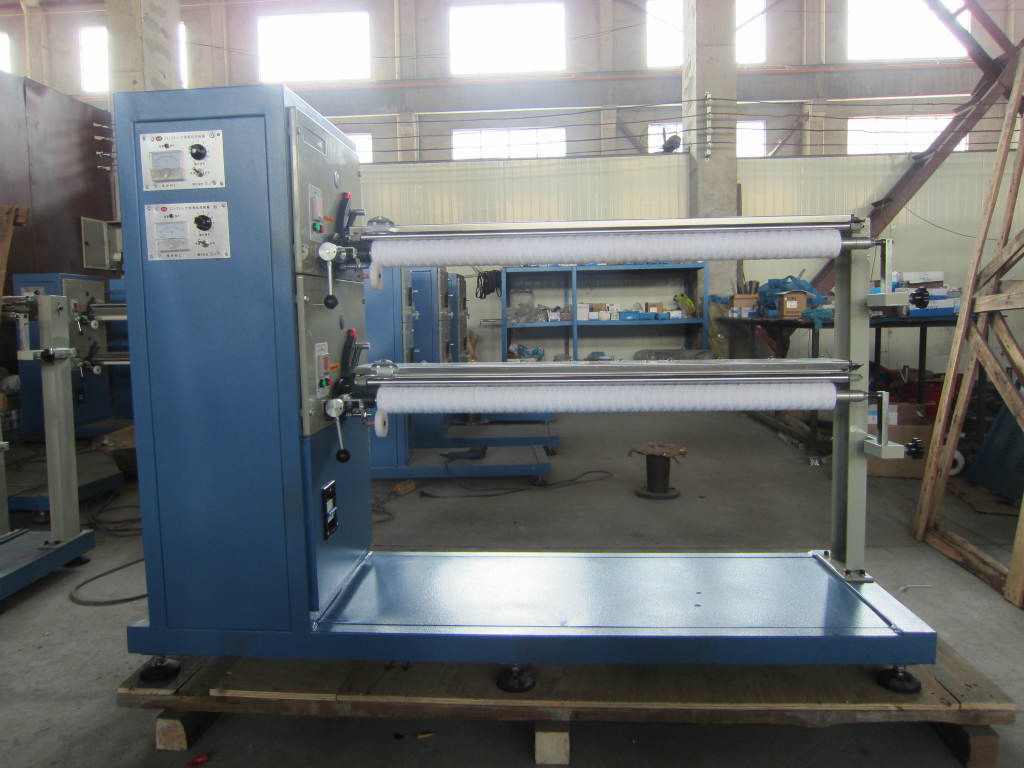

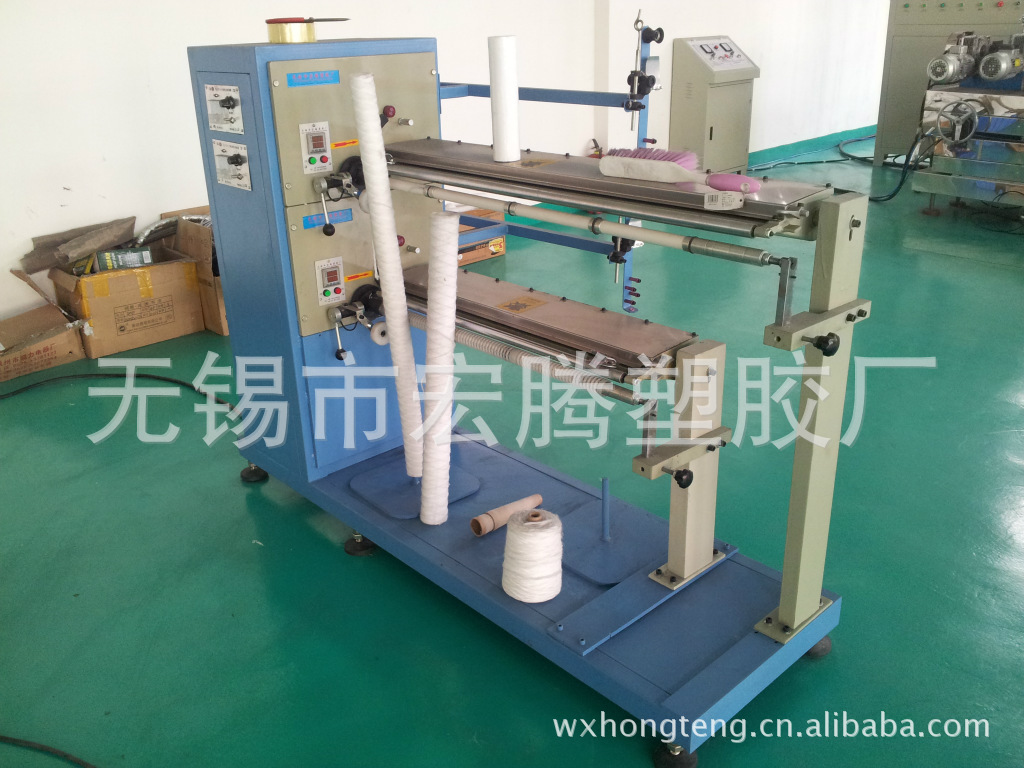

PP wound filter cartridge machine
PP绕线机器
A String wound filter machine equipment can produce two fixed size of cartridge at the same time
一台线绕过滤机设备,可以同时生产两个尺寸的滤芯
Machineapplication
机器应用
HT-00881 Single Spindle Filter Core Winder is mainly used in the fields of water purification, beverages, foodstuff, chemical, greases, pharmaceutical, electron, environmental protection etc. its a dedicated machine for the winding of different yarns, threads on filter cores, characterized by high speed, good yarn/ thread shape, automatic stop at yarn/threads fullness, prompt yarn/thread replacing and low energy consumption etc.
HT单锭纱线缠绕滤芯机主要用作于水净化、饮料、食品、化工、油脂、制药、电子、环保等行业领域。缠绕各种不同要求纱、线缠绕滤芯专用成型机器。本缠绕机具有高速,纱线成型好,满线自停,换线快捷,能耗低等多方面特点、/p>
Technicalparameters
技术参?/strong>
缠绕机卷绕线速度?0-320m/min
缠绕最大直径:200mm(缠绕直径大?00 mm可以在有限范围内为客户定做)
电源:AC380/220V 50HZ/60HZ电机型号:A026312
电机功率?80W/?50W/?nbsp; 电机转速:2800r/min
缠绕骨架材质:聚甲醛、不锈钢等依客户所需选用、/p>
缠绕骨架内径?6?8?9?0?2?0?5mm筈/p>
往复行程:一般分为:5?25+2mm)?0?50+4mm)?0?00+8mm)?/p>
30?50+12mm)?0?000 +16mm(/p>
(其它往复行程可以在有限范围为客户定做。)
单锭面板尺寸:(?times;高)390308mm
Payment:
T/T, 30% in advance and balance before shipment
Delivery time: 20 working days upon date of receipting deposit
付款方式:T/T,30%预付款,在装运前余款付清、br>交货时间:收到定金后20个工作日内交货、/p>
