厂家直销南美高清网络共享机支持南�?.0高清节目azfoxHDX7

厂家直销南美高清网络共享机支持南�?.0高清节目azfoxHDX7的详细描述：

Hot sell point

1. Allfunctionsof Azfox S2S ,speciallymade for south American customers .

2. PATCH(Nagravision 2.0+3.0)Catch Amozonas Satellite W61.0
3. internet sharing

4.HD DVB-S2, HDMI 1080P ,support Dongle(Ibox/azbox/pc30/pc40 etc)

5.LED display,Multicas+USB PVR

Features:

Chip:Ali-M3606C

Supports MPEG-2, MPEG-4, H.264 and fully DVB compliant
- DiSEqC 1.0, 1.1, 1.2 and USALS
- Aspect ratio adjustment 4:3 (16/9 crop), 4:3 (16/9 letterbox), 16:9 (4/3 pillar box)
-User friendly OSD and operation
- Total 4,000 Channels Programmable
- Multi-language audio support Multi-language menu text support
- Favorite channel selections
- Parental Guide and rating control
- EPG(Provider Electronic Program Guide) for On Screen Channel Information
- On-Screen Display with 65,536 Color
- Blind scan(Power Scan) & Powerful EPG
- Zoom Function in Pause
- Dolby Digital Bitstream Out through S/PDIF(Coaxal)
- Selectable output for 1080p, 1080i, 720p, 480p and 480i format
- Multiple Video Outputs
��HDMI, Component(YPbPr), Composit��
- USB 2.0 Host (Access to HDD, USB memory, Others etc) :
- Upgrade Software & Update Channel Database through USB 2.0 Port and RS232
- MP3 File Play by USB 2.0
- PVR Ready via USB 2.0

- Multimedia file play by USB 2.0
-Multicas
-Design by Korea

Specification

1.Tuner & Channel

Type 1 F Type, IEC169-24, Female
Frequency Rage 950MHz to 2150MHz
lRF Impedance 75 Ohm unbanlanced
Signal Level -65 to -25 dBm
LNB Power 13/18Vdc +/- 5%, 0.5Amax, Overload Protected
l22KHz Tone Frequency :224KHz +/- 2KHz, 0.6Vpp +/- 0.2V
DiSEqC Control Version1.0, 1.2, Tone burst A/B
Demodulation QPSK, 8PSK
Input Symbol Rate DVB-S QPSK : 1~45 Msps
DVB-S2 8PSK/QPSK : 10~30Msps
FEC Decoder 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10 in DVB-S2 mode. 1/2, 2/3, 3/4, 5/6 and 7/8 in DVB-S mode.

2.System & Memory

Main Processor ALI3601
lFlash Memory 4Mbytes
DDR II Memory 512Mbytes
Channel Capacity Digital Channel: 4,000

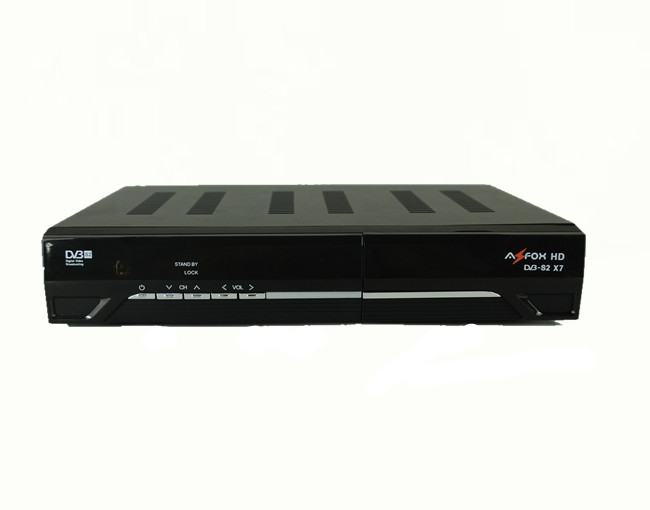

lFront 1-Key(Power), 7-SEGMENT DISPLAY

3. MPEG Transport Stream & A/V Decoding

Transport Stream 13818-1 MPEG-2, H.264/AVC Transport stream Specification
Profile Level MPEG-2 MP@ML, MP@HL, MPEG-4 H.264/AVC
Input Rate Max. 90Mbit/s
Aspect Ratio 4:3, 16:9, Letter Box
Frame Rate 25Hz for PAL, 30Hz for NTSC
Video Resolution 576i, 576p, 720p, 1080i ,1080P
Teletext Through VBI
Audio Decoding MPEG-1 Layer 1 & 2, Dolby Downmix
Audio Mode Single Channel/Dual Channel Joint Stereo/Stereo
Frequency Response 20~20kHz, <+/-2dB

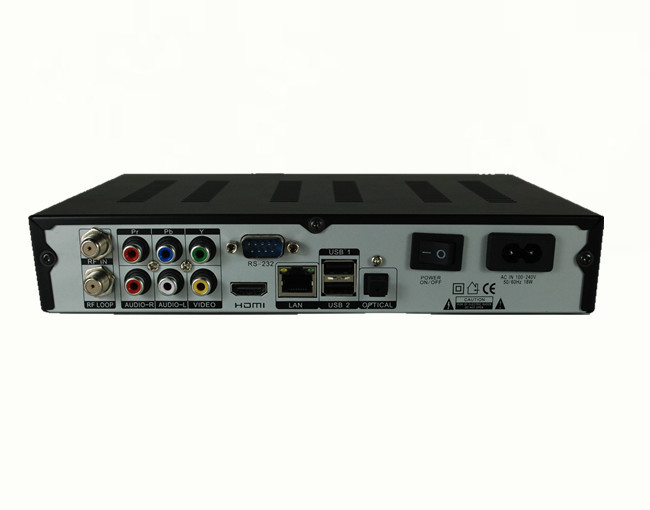

4. A/V & Date In/Out

HDMI HD Video/Audio Output
Data Interface - RS-232, Bit Rate: 115,200baud
Connector: 9-pin D-sub Male type
USB : USB 2.0, Type A Connector

5. power output

Input Voltage AC 100V ~ 240V, 50Hz ~ 60Hz
l Power DC 12V-3A(option)

6. Environmental Condition

Operating Temperature 0 ��C ~ 40 ��C
Storage Temperature -10 ��C ~ 50 ��C
Operating Humidity Range 10~85% RH, Non-condensing
Storage Humidity Range 5~90% RH, Non-condensing

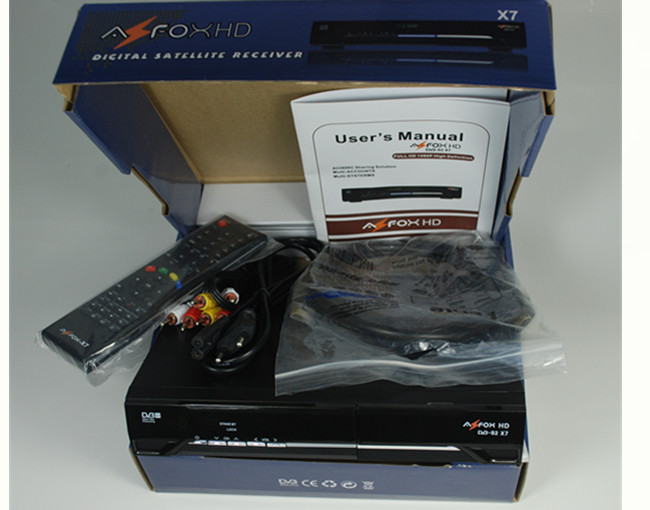

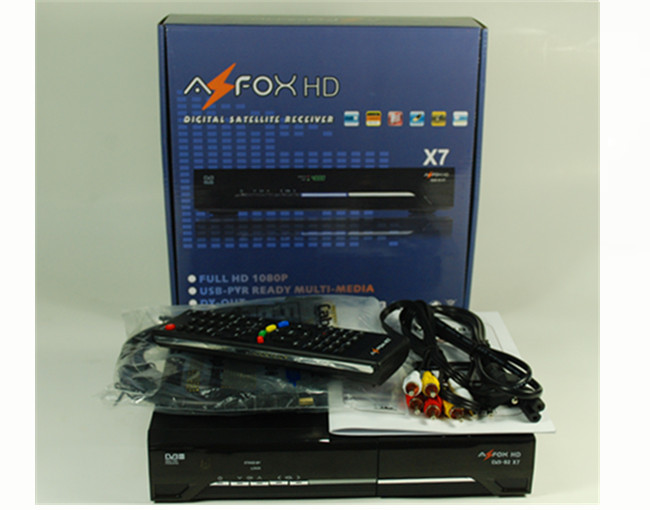

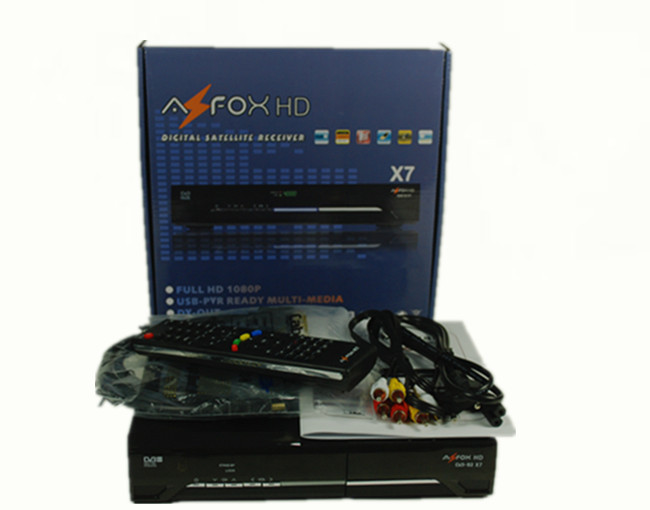

Packing Information

I Azfox HD X7,1 remote control ,1 manual book ,1 HDMIcable ,1power supply

package weight :1.5kg . package size :w26*h26*d6cm

Shipment &Payment

Shipping terms : DHL,EMS,UPS ,China post or as customer request

Payment terms : T/T ,L/C ,Paypal ,WEST UNION or as customer request

After sale service

We guarantee 1 year free repair ,3 months replacement ,7days return for you .

Contact us

Price just subject to final comfirmation ,if you have any questions ,please feel free to contact us ,we will try our best to be of service
