【蓄热球产品介绍【�span style="font-family: arial;">:

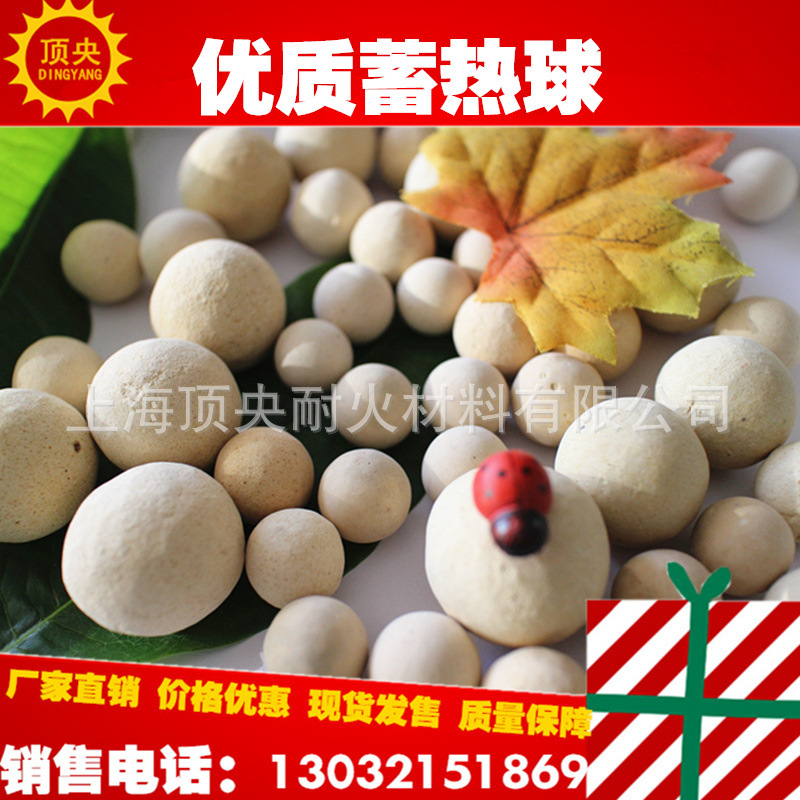

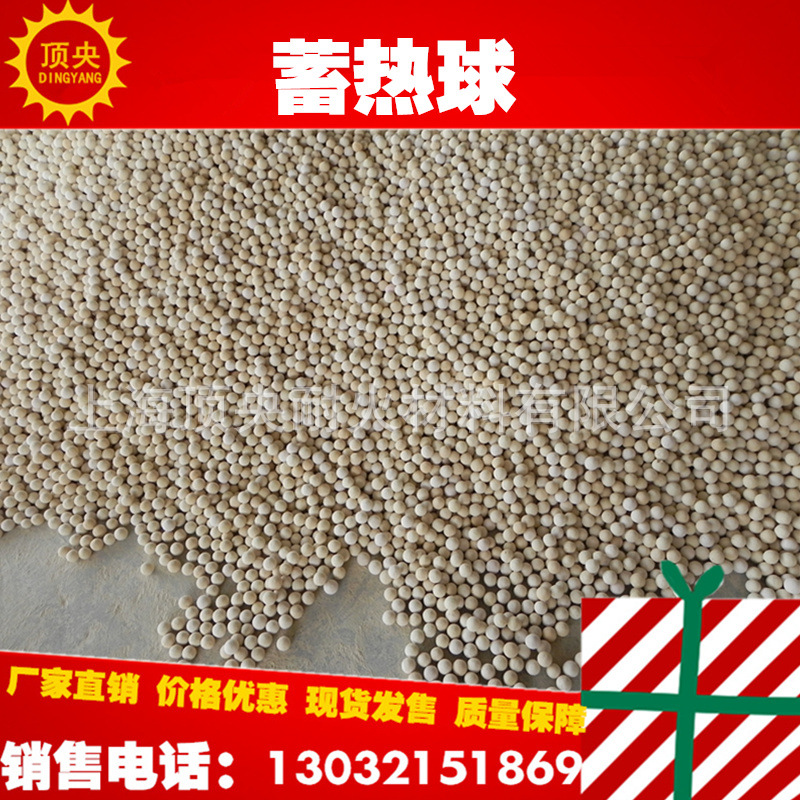

上海顶央蓄热球又称球状蓄热体，具有重烧线收缩率低、高温荷重软化温度高、耐腐蚀、强度高、蓄放热量大、热震稳定性好、导热性能好、热膨胀系数小等显著特点，是优良的耐火材料、�/span>

【蓄热球主要理化指标】：

性能/种类	空分用热瓷球	加热炉用蓄热琂�/span>
Al2O3	20-30	45-75
SiO	��92	��95
Fe2O3	��1	��1.5
热容量（J/kg.k（�/span>	��836	��1000
导热系数（w/mk（�/span>	2.6-2.9
耐热变温差（ ℃）	20~800	20~1000
耐火�?nbsp;（℃（�/span>	1550	1750
抗压强度（N（�/span>	800-1200	1800-3200
堆重（kg/m（�/span>	1300-1400	1500-1600

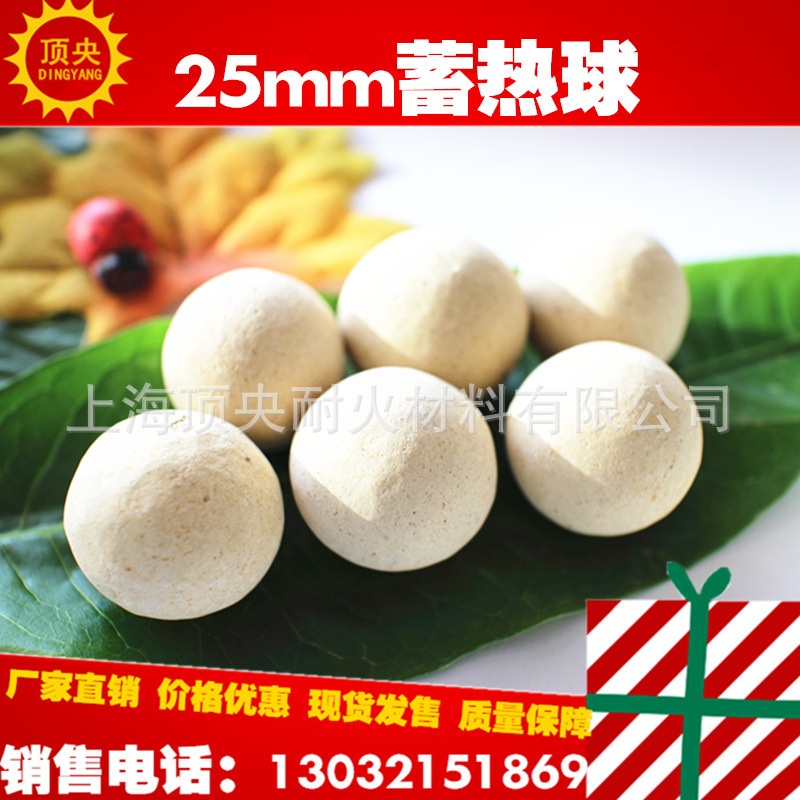

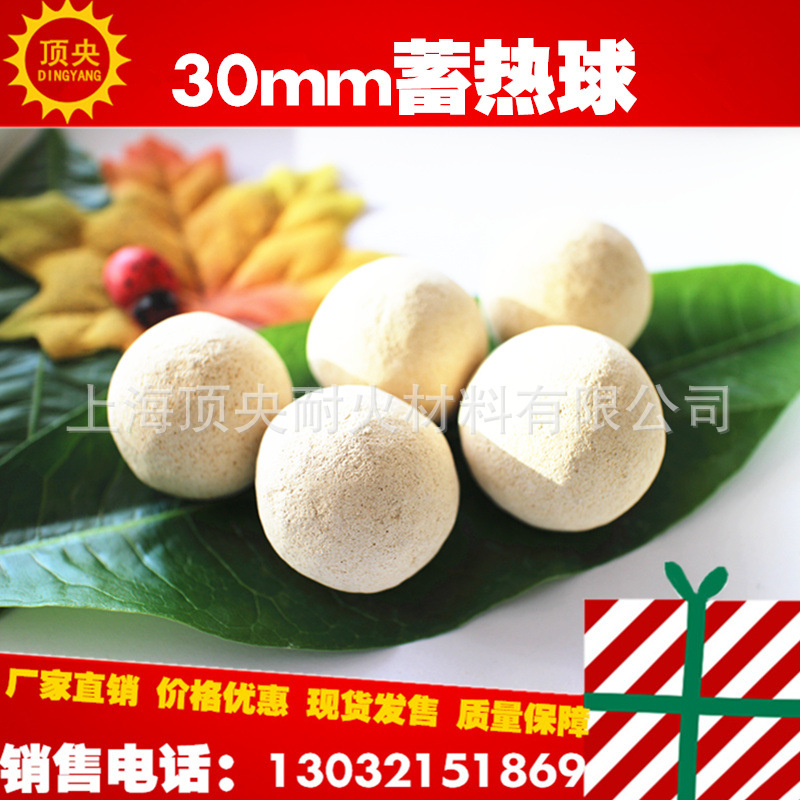

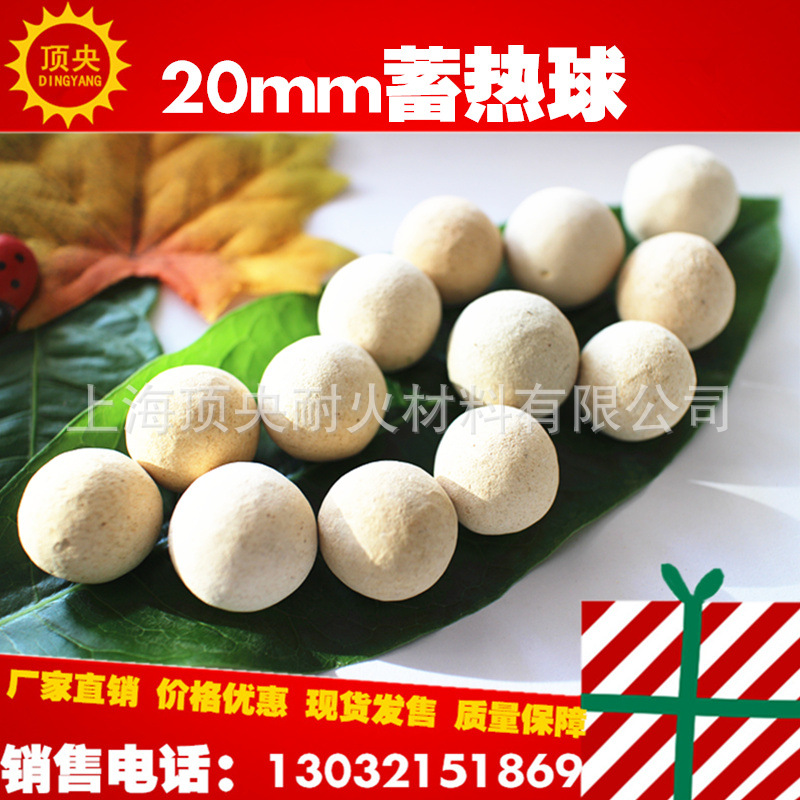

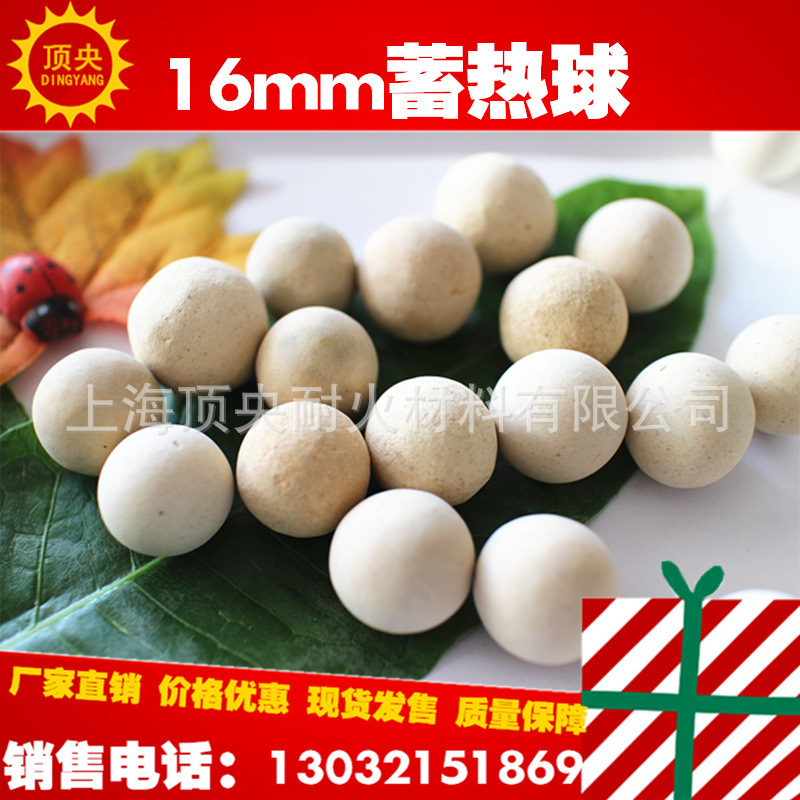

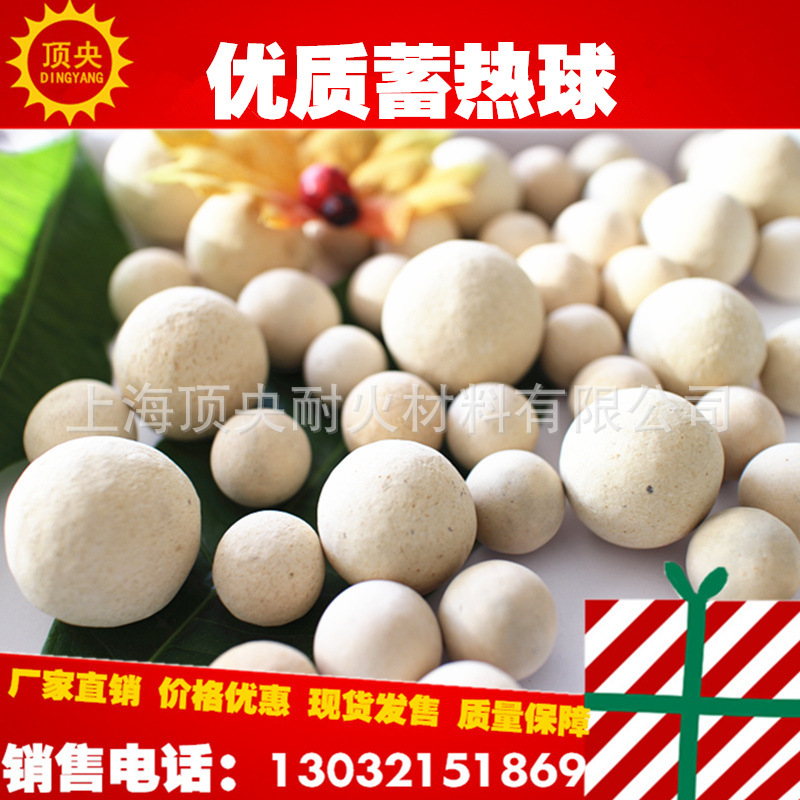

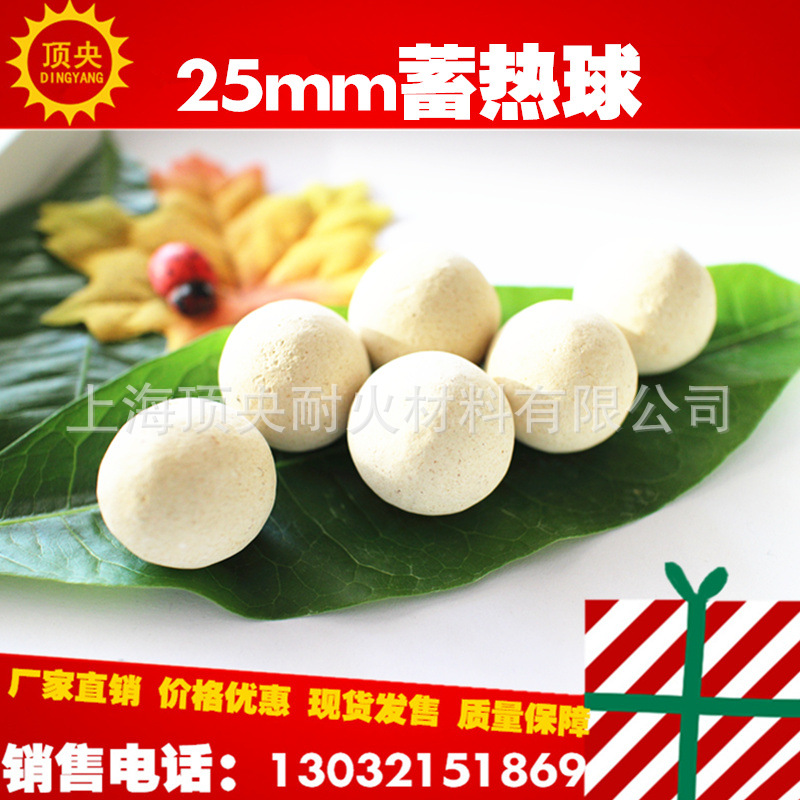

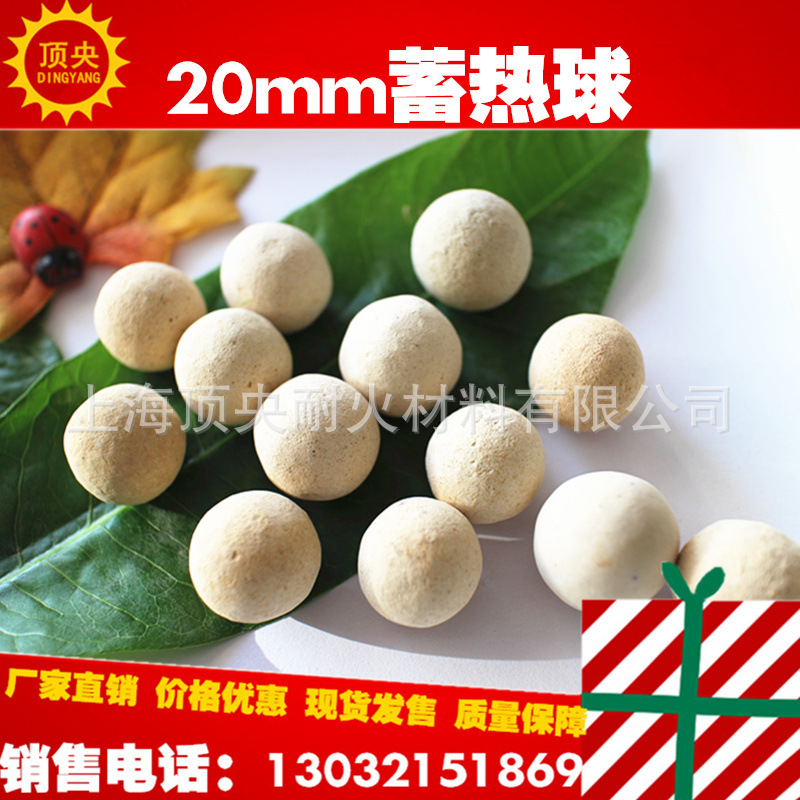

主要规格�?Phi;5mm ��8mm ��10mm ��15mm ��20mm ��25mm ��30mm

【蓄热球的特点【�span style="font-family: arial;">:

耐火球是以工业氧化铝和耐火高岭土为主要原料，经科学配方、成形和高温锻烧制成皃�span style="font-family: times new roman;">,它具月�/span>以下特点９�/span>

1、机械强度高，使用周期长 ：�/span>

2、化学稳定性好，不与物料发生化学反�?nbsp;：�/span>

3、耐高温性能奼�/span>，最高耐热温度可达�?nbsp;1900 �� C、�/span>

【蓄热球的特性】：

1、比表面积可达到240m2/m3、�/span>

2、众多小球将气流分割成很小流股，气流在蓄热体中流过时，形成强烈的紊流，有效的冲破了蓄热体表面的附面层，又因球径小，传导半径小、热阻小、密度高、导热性好，故可实现蓄热式烧嘴频繁且快速换向要求、�/span>

3、蓄热体可利�?0~30�?h的换向，高温烟气流经蓄热体床层内，便可将烟气降至130℃左右排放、�/span>

4、高温煤气和空气流经蓄热体在相同路径内即可预热到仅比烟气温度�?00℃左右，温度效率高达90%以上、�/span>

5、因蓄热体体积十分小巧，加之小球床的流通能力强，即使积灰后阻力增加也不影响热换指标、�/span>

6、蓄热小球具有抗氧化、抗渣性强的特点、�/span>

7、陶瓷小球的更换、清洗非常方便，并可重复使用、�/span>

【蓄热球的应用领域【�span style="font-family: arial;">:

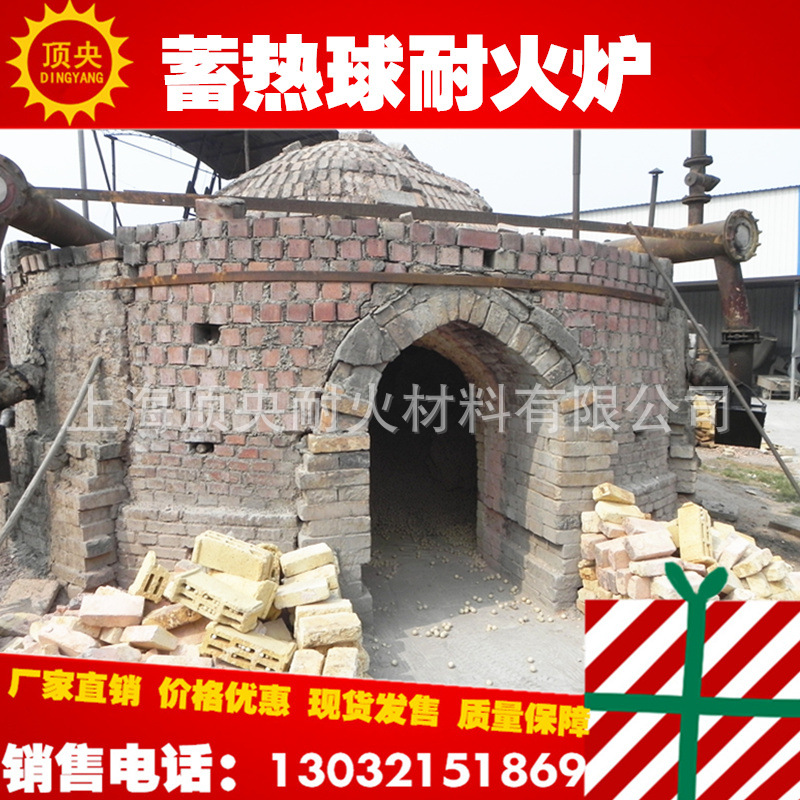

蓄热球适用于气体及非气体燃料工业炉的蓄热球燃烧系统选用，特别适用于钢铁行业蓄热式加热炉、蓄热式钢包烘烤器、空分行业空气分离设备蓄热器、有色金属行业蓄热式熔炼炉，也可用在大型锻造厂蓄热式台车炉、蓄热式电锅炉、蓄热式焚化炉等行业做蓄热载体、�/span>

蓄热球通过对煤气（高炉、转炉）和空气双预热（油类、高热值煤气等则采取助燃空气单蓄热方式），可使蓄热式加热炉达到排烟量减尐�span style="font-family: arial;">20-50%，排烟温度降至小亍�/span>150度，产量提高15-20%，钢坯加热时间缩�?/span>50%，氧化烧损降位�/span>30-50%的环保节能效果、�/span>

英文版产品介绌�/span>

【The heat accumulating ballproducts【�

Heat storage ball is a ball shaped heat storage body, with heavy firing line of low shrinkage, high temperature and high refractoriness under load, corrosion resistance, high strength, large heat storage, put good thermal shock resistance,good thermal conductivity, small coefficient of thermal expansion is the significant features, excellent refractory.

【features regenerative ball【�

Refractory ball with industrial alumina and refractory kaolin as the main raw material, scientific formula, forming and high temperature calcined made, it has the following characteristics:

1, high mechanical strength, long use period;

2, good chemical stability, do not react chemically with the material;

3, high temperature resistant performance is good, the highest heat resistanttemperature can reach 1900 DEG C.

【Characteristics heat storage ball【�

1, the specific surface area can reach 240m2/m3.

2, many small balls of the airflow is split into a small stream, flow in the regeneratorflow, the formation of strong turbulence, effectively broke through the boundary layer heat storage body surface, and because the ball size, transmission radius of small, small thermal resistance, high density, good thermal conductivity, so it canrealize the regenerative burning the mouth is frequent and fast reversingrequirements.

3, regenerator can be used 20~30 times /h reversing, high temperature flue gasthrough the regenerator bed, can be reduced to about 130 DEG C emissions fromflue gas.

4, the high temperature coal gas and the air flowing through the heat storage body can be in the same path preheating to only 100 DEG C lower than the temperature of flue gas, temperature efficiency can reach above 90%.

5, because the heat accumulator volume is small, and the pellet bed flow ability,even if the ash after does not affect the heat transfer resistance increase index.

The characteristics of 6, thermal storage ball has antioxidant, high slag resistance.

7, ceramic ball replacement, cleaning is very convenient, and can be repeatedly used.

【The application field of regenerative ball 【�

Regenerative ball is suitable for the combustion system of the regenerative ball gasand non fuel gas industrial furnace used in steel industry, especially suitable for theregenerative heating furnace, regenerative ladle baking device, air separation industry of air separation equipment in regenerator, regenerative furnace of non-ferrous metals industry, also used in large type forging factory regenerative car bottom furnace, heat storage electric boiler, regenerative thermal oxidizer and other industries do heat carrier.

Regenerative ball through the gas (blast furnace) and air double preheating (oil,high calorific value gas is taken combustion air single regenerative way), can reachexhaust to reduce the amount of 20-50% regenerative heating furnace, flue gas temperature is reduced to less than 150 degrees, the yield increased 15-20%, billetheating time is shortened by 50%, decrease the oxidation burning loss ofenvironmental protection energy saving effect of 30-50%.
